Alarm Equipped High Pressure Accelerated Aging Chamber With Over Temperature Protection

  • 1
  • 2

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Product name : High Pressure Accelerated Aging Chamber

Model NO. : UP-6124

Temperature Range : 105ºC~132ºC

Pressure Range : Table Pressure 0.2~2.0kg/Cm2

Range Humidity : 75%~100%Rh

Temperature and Humidity Uniformity : ±0.5ºC/±5%Rh

Brand Name : YOUBI

Model Number : UP-6124

Place of Origin : CHINA

Payment Terms : T/T,D/P,Western Union,Paypal,

Supply Ability : 30 Unit/month

Delivery Time : 7-15 work days

Packaging Details : Professional Export Wooden Box Packaging

Contact Now

Alarm-Equipped High Pressure Accelerated Aging Chamber With Over Temperature Protection
Product Overview

HAST (Highly Accelerated Stress Test) chambers reduce the time required for semiconductor humidity testing by elevating temperatures above 100°C and increasing pressure, simulating normal humidity tests while maintaining identical failure mechanisms. Testing can be completed in days or weeks rather than months.

Key Features
  • Automatic humidity filling system
  • Automatic door lock mechanism
  • Round workspace design for wider sample board loading
  • Hermetic power-pin system for bias testing
  • Air HAST modification available for faster lead-free solder whisker resistance testing
Technical Specifications
Parameter Specification
Temperature Range (Saturated Steam) 100°C~135°C (Operating temperature: 120°C, 100Kpa / 133°C, 200Kpa; 143°C available as special order)
Pressure Measurement Relative pressure: Display values indicated on pressure gauge
Absolute pressure: Display values + 100 Kpa (actual value in inner box)
Humidity of Saturated Steam 100%RH saturation steam humidity
Steam Pressure (Absolute Pressure) 101.3Kpa + 0.0Kg/cm² ~ 2.0Kg/cm² (3.0Kg/cm² available as special standard)
Recursive Device Steam natural convection circulation
Safety Protective Devices Water short storage protection, over pressure protection (automatic/manual water replenishing, automatic pressure discharge function)
Accessories Two layers stainless steel plate
Power Requirements AC 220V, 1ph 3 Lines, 50/60Hz
Chamber Characteristics
  • Large capacity water tank for extended testing time with fully automatic water supply
  • Sample signal application terminals matched to sample quantity
  • 7-inch color touch screen with 250 sets of 12,500 segment programs
  • USB curve data download function with RS-485 communication interface
  • Efficient vacuum pump for high purity saturated steam
  • Integrated silicone door pad with excellent gas density and long service life
  • Customized equipment available for specific customer requirements

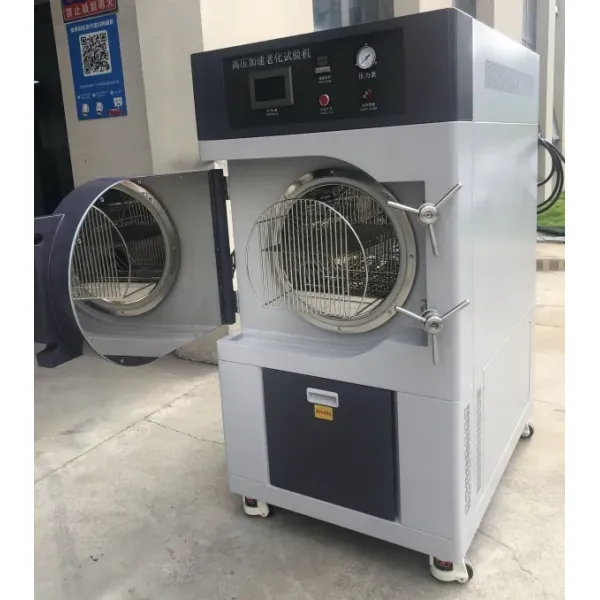

Product Images
Alarm Equipped High Pressure Accelerated Aging Chamber With Over Temperature Protection Alarm Equipped High Pressure Accelerated Aging Chamber With Over Temperature Protection
Our Service Process
  1. Customer Inquiry: Technical requirement discussion, product recommendation, and quotation
  2. Specifications Customization: Technical drawings, product appearance reference, and final solution confirmation
  3. Production and Delivery: Manufacturing according to PO requirements, production progress updates, calibration, and shipping coordination
  4. Installation and After-Sales: Field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for international customers. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom branding and logos.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
